Haber-Bosch process

Key reaction

Operating conditions

Temperature

400-450°C

Pressure

150-300bar

Catalyst

Fe / Fe₃O₄ promu K₂O + Al₂O₃

Phase

gas

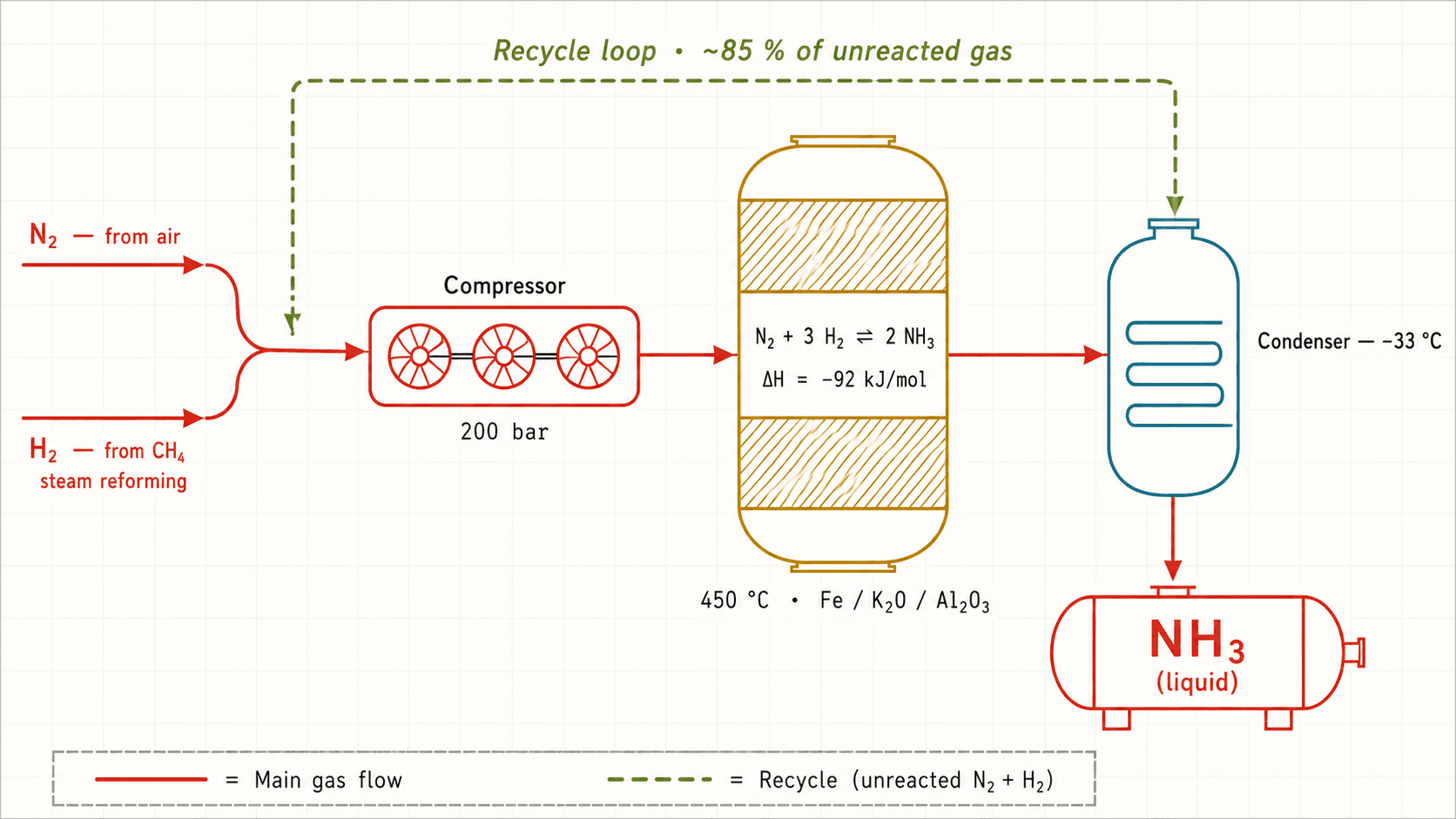

How it works

How it works

Key components

The role of each main part, and the elements / compounds it involves.

• Multi-stage compressor

  Compresses the N₂ + H₂ mixture up to 150-300 bar to shift the equilibrium toward NH₃ formation.

  Compression is staged (typically 4 to 6 stages) with inter-stage cooling to keep temperature rises in check. Each stage raises pressure by a factor of ~2-3. It is the most energy-intensive part of the process — about 10-15 % of an ammonia plant's total energy budget.

  150-300 bar · 4-6 étages · refroidissement inter-étage

  See also :n2h2

• Iron-catalyst reactor

  Heart of the process. The gas mixture flows through the catalyst bed where ~15 % of the N₂ and H₂ combine into NH₃.

  The catalyst is finely divided metallic iron (Fe / Fe₃O₄), promoted by K₂O (which activates N₂ dissociation) and stabilized by Al₂O₃ (prevents sintering at high temperature). The reactor runs at 400-450 °C — a compromise: hotter speeds up kinetics but shifts the equilibrium back toward reactants (exothermic reaction). Per-pass conversion is capped at ~15 %, hence the recycle loop.

  400-450 °C · 200 bar · catalyseur Fe / K₂O / Al₂O₃ · ~15 % conv./passage

  See also :n2h2nh3fekal

• Refrigerated condenser

  Liquefies the ammonia formed at the reactor outlet, separating it from unreacted N₂ and H₂.

  At 200 bar, NH₃ condenses around −20 to −30 °C while N₂ and H₂ remain gaseous (boiling points −196 and −253 °C). Liquid NH₃ is drawn off at the bottom and stored; non-condensable gases are sent back to the compressor through the recycle loop. This phase-change separation is what makes the whole process economical.

  −20 à −30 °C · 200 bar · NH₃ liquide / N₂-H₂ gazeux

  See also :nh3

• High-pressure recycle loop

  Sends the ~85 % of unconverted gas back to the reactor to reach overall conversion > 97 %.

  Without recycling, losing 85 % of the feed on each pass would kill the economics. The loop keeps the mixture under pressure — avoiding decompression and recompression saves a huge amount of energy. A small purge bleeds out inert gases (Ar, residual CH₄) that would otherwise accumulate.

  ≈ 85 % du débit gazeux · purge inertes ~2 %

Physical and chemical principles

The fundamental laws that make this process possible — and the constraints they impose.

• Le Chatelier's principle (pressure-shifted equilibrium)

  The reaction goes from 4 moles of gas (1 N₂ + 3 H₂) to 2 moles (2 NH₃) — the product side has fewer moles. Raising pressure forces the system to minimize volume, hence to form more NH₃. That's exactly why the process operates at 200 bar: without it, the equilibrium is too unfavorable even at high temperature.

  N₂ + 3 H₂ ⇌ 2 NH₃ (Δn = −2 mol gaz)
  Applies to components :compresseurreacteur-catalytique

• Heterogeneous catalysis (breaking the N≡N triple bond)

  The N≡N triple bond (945 kJ/mol) is one of the strongest in chemistry. Without a catalyst, dissociating N₂ would require temperatures above 1000 °C. Iron chemisorbs N₂, weakens the N≡N bond, and lets H₂ (itself dissociated on the surface) add stepwise. K₂O boosts activity by donating electrons to iron; Al₂O₃ structures the support to prevent sintering.

  N₂(ads) → 2 N(ads) → … → 2 NH₃
  Applies to components :reacteur-catalytique

• Kinetic vs thermodynamic trade-off

  The synthesis is exothermic (ΔH = −92 kJ/mol). At low temperature the equilibrium favors NH₃ but the reaction is too slow. At high temperature kinetics are fast but the equilibrium shifts toward reactants. 400-450 °C is the window where per-pass conversion stays decent (~15 %) while sustaining industrial throughput. The whole plant design revolves around that trade-off.

  ΔH = −92 kJ/mol · K_eq décroît avec T
  Applies to components :reacteur-catalytique

Compounds involved

Decarbonization and current challenges

• Ammoniac vert : H₂ produit par électrolyse alimentée 100 % renouvelable (Yara Norvège, NEOM Arabie Saoudite)
• Capture-utilisation du CO₂ co-produit (CCUS, urée bas-carbone)
• Mini-usines décentralisées (~1-10 tNH₃/jour) pour fermes et petites communautés
• Catalyseurs ruthénium-baryum permettant 100 °C et 50 bar — encore en R&D
• Vecteur énergétique : NH₃ comme carburant maritime (IMO 2050) et stockage long terme d'H₂

Similar or competing processes

Related industrial processes — alternative chemistry, alternative technology.

• electrosynthese-nh3

  Direct electrochemical synthesis of NH₃ from N₂ + H₂O — eliminates the Haber-Bosch step and H₂ production altogether. Still at lab scale, low yields.

• frank-caro

  Historical process (1898) that produced calcium cyanamide CaCN₂ as a fixed-nitrogen carrier. Phased out in the 1920s as Haber-Bosch's far better energy efficiency took over.

History and discovery
